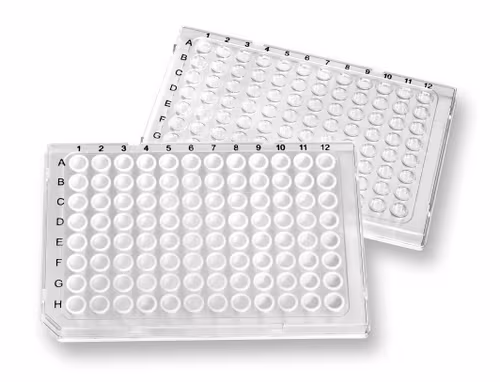

A-Frame® 96 Well PCR Plate, Semi-Skirted, Standard Profile, Universal Style

<div class="Sirv" data-src="https://arvensis.sirv.com/A-Frame/A-Frame_Universal_Gallery.view"> </div> <script> var SirvOptions = { viewer: { video: { preload: true }, zoom: { trigger: 'click', ratio: 3, hint: { enable: false } }, thumbnails: { enable: true, size: 45, type: 'square' }, slide: { animation: { type: 'fade', duration: 1500 }, autoplay: false }, fullscreen: { enable: true } } } </script>

  • The rigid semi-skirted frame remains dimensionally stable during thermal cycling, which facilitates reliable robotic handling and ensures that the seal to each well is not compromised during thermal cycling
  • Thin-walled tubes made from 100% virgin medical grade polypropylene
  • Standard profile wells have a maximum capacity of 330µl
  • Manufactured to the highest quality standards for your PCR and qPCR applications
  • Our 2-component Universal style design features a semi-skirt frame and standard height wells for compatibility with a wide range of instruments

Quality Standards:

Certified free from DNase, RNase, nucleases and human gDNA.

Ordering Details
Part Number
Description
Part Number
AFC-1031
Description

Arvensis® A-Frame® 96 Well PCR Plate, Semi-Skirted, Universal style with H1 cut corner, Standard Profile 0.3mL wells, Clear Rigid Frame, Clear PP Tubes, 10 plates per sleeve, 50 plates per box

Part Number
AFC-1032
Description

Arvensis® A-Frame® 96 Well PCR Plate, Semi-Skirted, Universal style with H1 cut corner, Standard Profile 0.3mL wells, Clear Rigid Frame, White PP Tubes, 10 plates per sleeve, 50 plates per box

Part Number
AFC-1033
Description

Arvensis® A-Frame® 96 Well PCR Plate, Semi-Skirted, Universal style with H1 cut corner, Standard Profile 0.3mL wells, Clear Rigid Frame, White HIGH SENSITIVITY PP Tubes, 10 plates per sleeve, 50 plates per box

Technical Drawings
Arvensis 96 Well PCR Plate, Semi-Skirted, Universal style, H1 cut corner, Standard Profile 0.3ml wells
